Xellia Pharmaceuticals

Budapest, Hungary

MEMBRATORIndustrial
MEMBRATOR membrane bioreactor tanks at the Xellia Pharmaceuticals antibiotics plant, Budapest, Hungary

Scope of supply

Xellia Pharmaceutical Chemical manufactures antibiotics at its Budapest factory. UTB was commissioned with a major turnkey extension of the plant's process effluent treatment, built around biological treatment with membrane separation: equalisation, pH adjustment, drum filtration, pre-aeration, and high-loaded activated sludge with membrane filtration for sludge-water separation (MBR), followed by mechanical sludge thickening and storage. The work was a capacity extension, taking the plant from 360 to 600 m³/day.

  • 600 m³/day
  • 78,125 PE
  • MEMBRATOR: high-loaded activated sludge with membrane separation
  • Effluent to the communal sewer network
  • Commissioned June 2020.
ClientXellia Pharmaceuticals
LocationBudapest, Hungary
SegmentIndustrial
Capacity600 m³/day
TechnologiesMEMBRATOR

On site

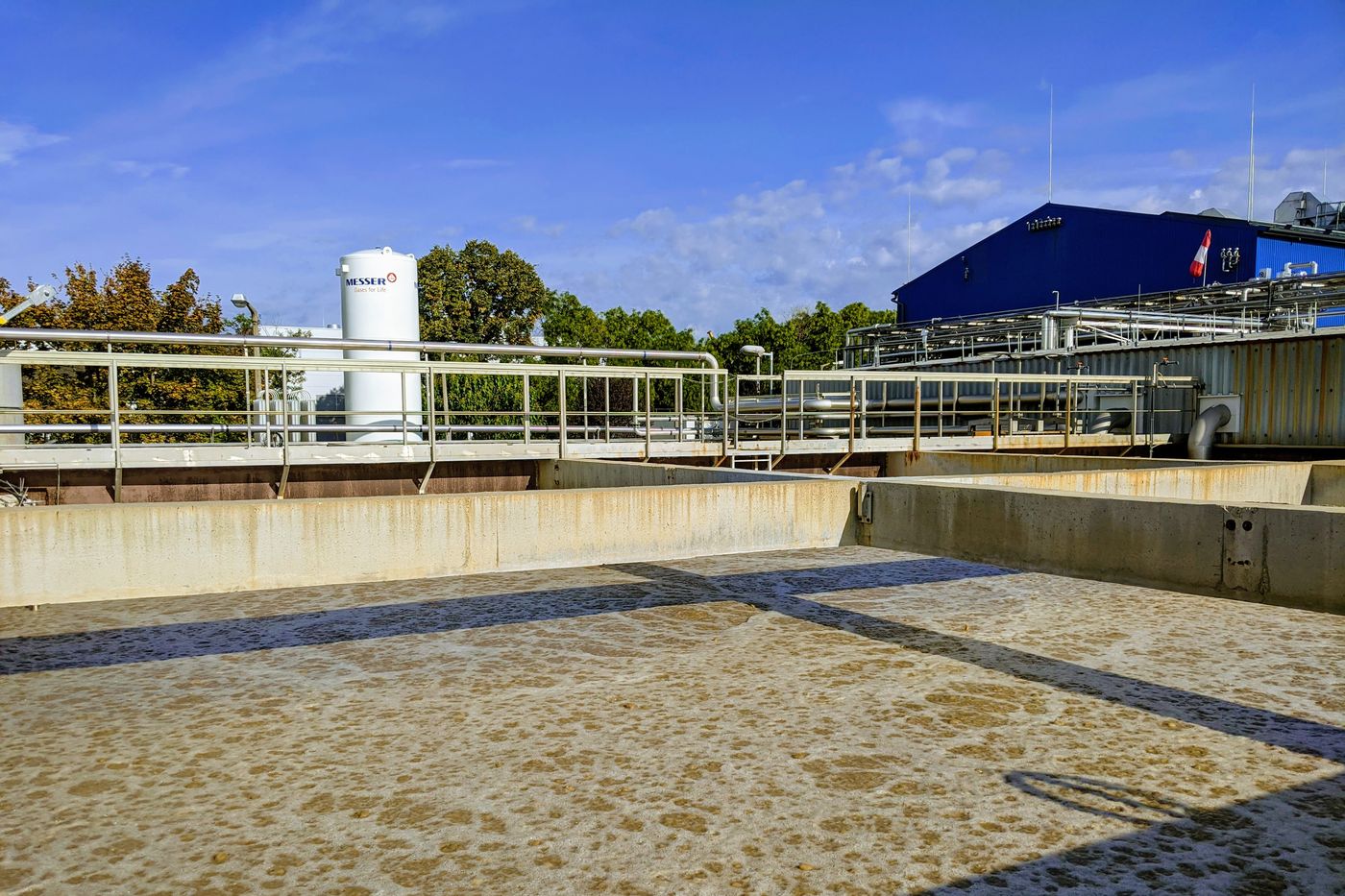

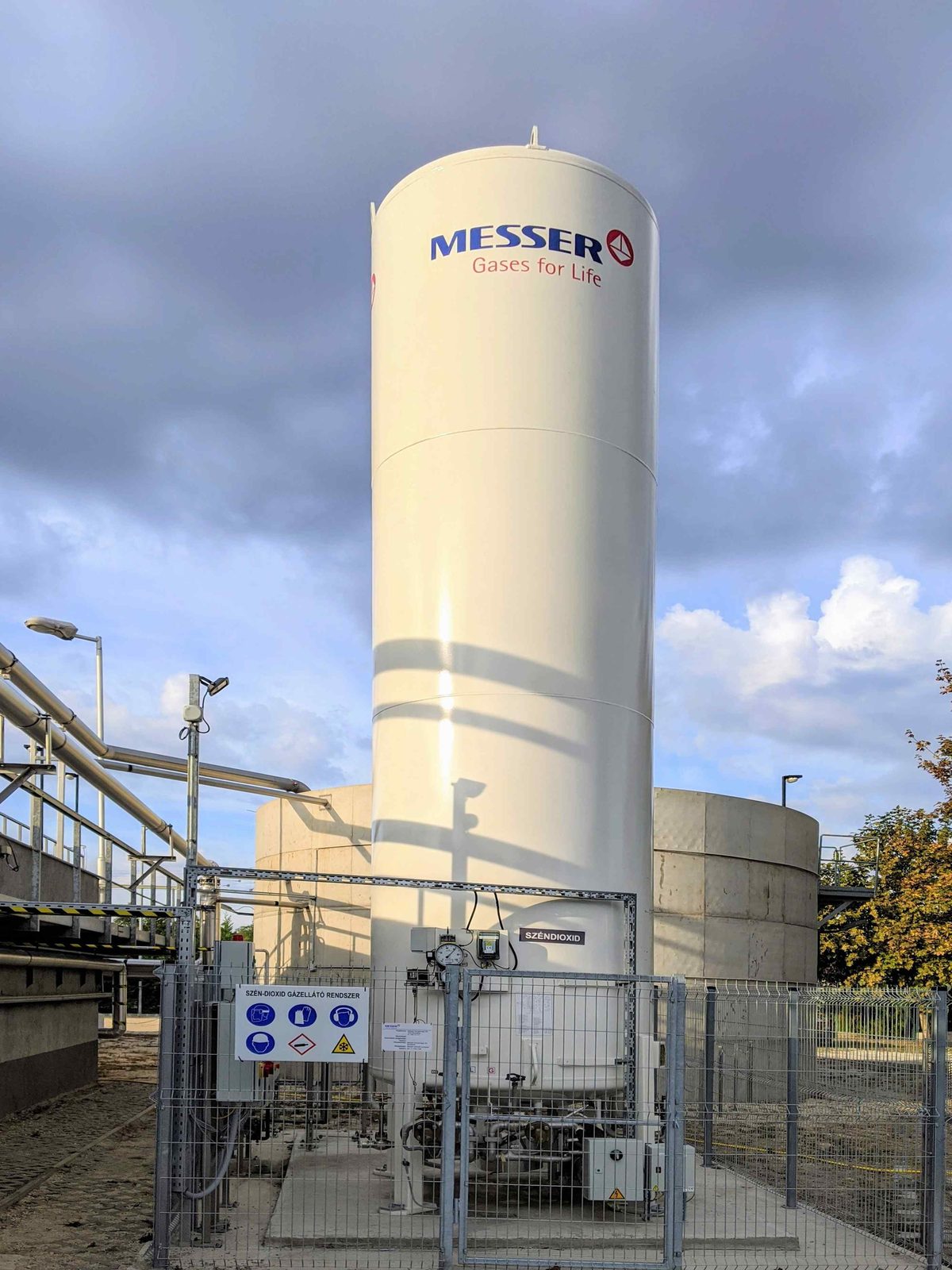

MEMBRATOR membrane bioreactor tanks at the Xellia Pharmaceuticals antibiotics plant, Budapest, HungaryAerated activated sludge basin at the Xellia Pharmaceuticals wastewater treatment plant, Budapest, HungaryLiquid oxygen tank supplying the aeration system at Xellia Pharmaceuticals, Budapest, HungaryMEMBRATOR MBR basins and walkways at the Xellia Pharmaceuticals wastewater treatment plant, Budapest, HungaryOxygen storage tank beside the treatment basins at the Xellia wastewater plant, Budapest, HungaryHigh-load activated sludge basin at the Xellia Pharmaceuticals effluent treatment plant, Budapest, Hungary
