DREHER Breweries

Budapest, Hungary

UASBIndustrial

Scope of supply

Dreher Breweries produces and distributes bottled, canned and draught beer in Budapest. UTB built the wastewater plant turnkey: drum filtration, buffering and two-stage biological treatment: a UASB anaerobic stage followed by an aerobic stage. The biogas from the anaerobic system is burned in a boiler and returned to the brewery as steam. Closed reactors and a biofilter keep the plant inside strict noise and odour limits.

2,800 m³/day
107,333 PE
3,900 Nm³/day biogas recovered as steam
UASB anaerobic + aerobic biological treatment
Technical handover November 2007; commissioning completed May 2008.
Closed reactors and biofilter for noise and odour control

Location	Budapest, Hungary
Segment	Industrial
Capacity	2,800 m³/day
Technologies	UASB

Parameters as commissioned

Influent, the consent limit, and the effluent quality actually measured.

Parameter	Influent (mg/l)	Effluent limit (mg/l)
CODKr	3,500	1,000
BOD5	2,300	500
NH4-N	1.4	,
TP	19.5	,
TSS	400	150

On site

Covered METHANATOR UASB reactor with the Dreher brewery buildings behind, Budapest, Hungary

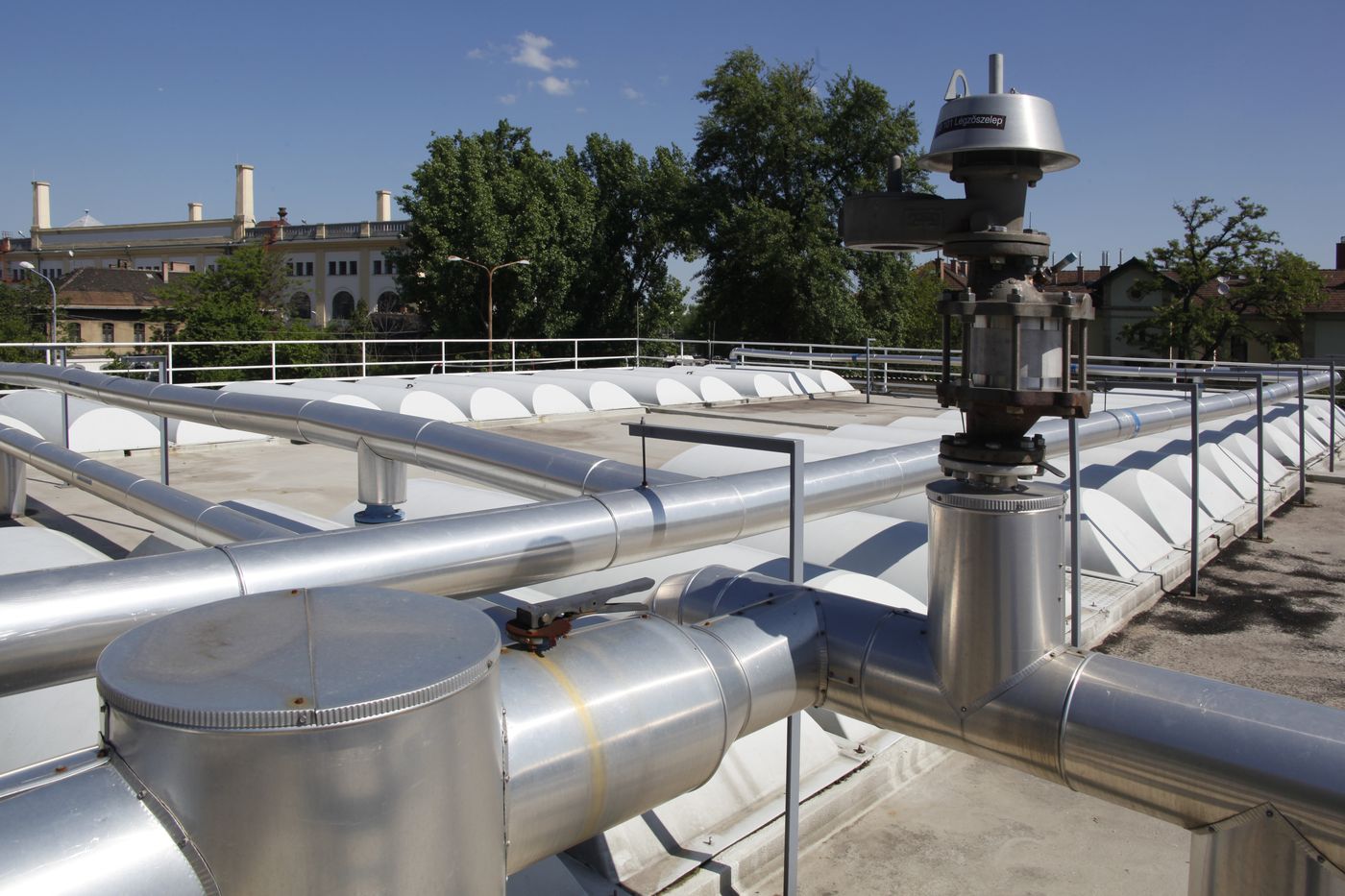

Biogas safety valve and insulated pipework on the Dreher brewery anaerobic reactor, Budapest, Hungary

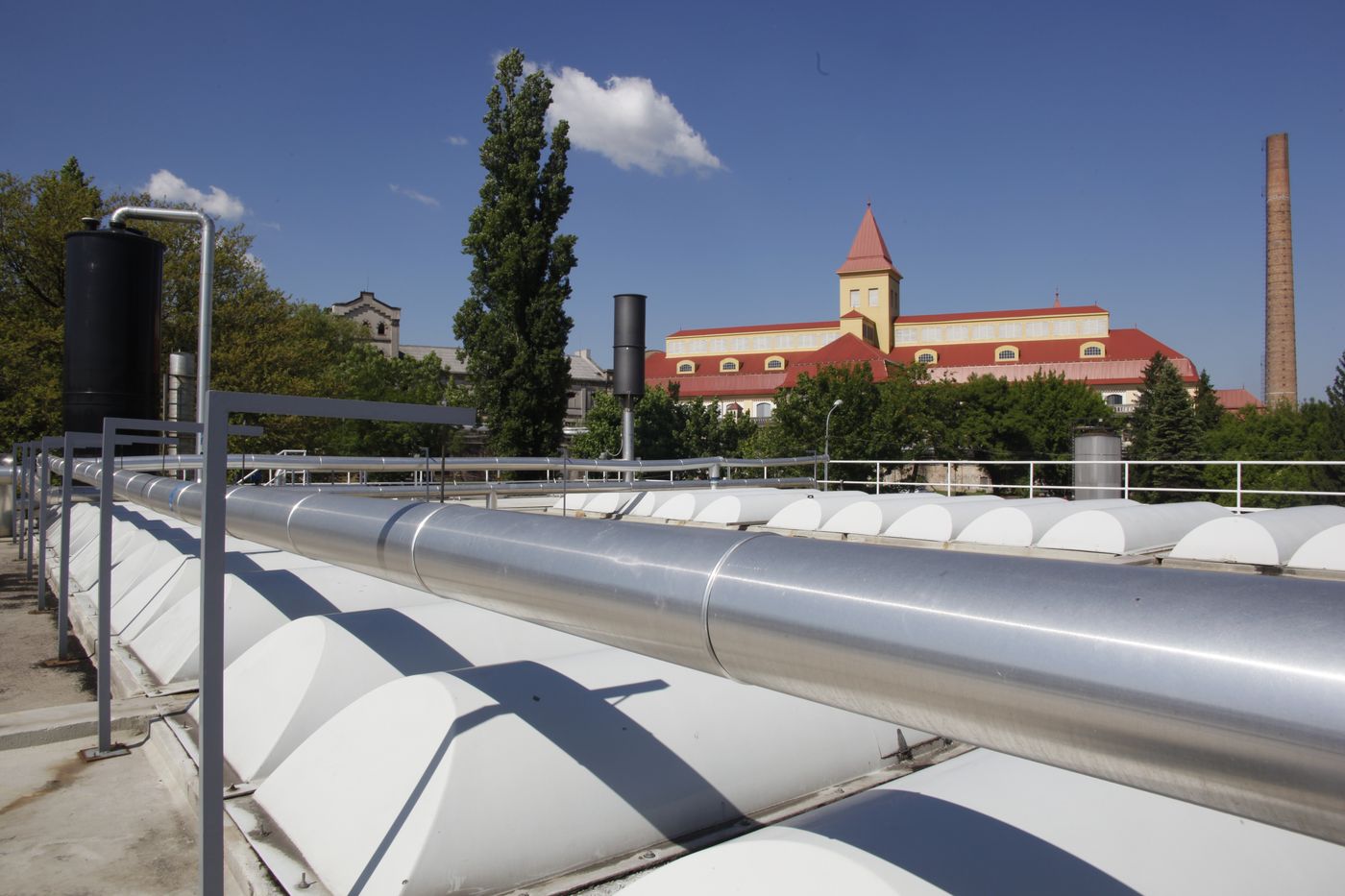

Insulated biogas line along the covered UASB reactor at the Dreher brewery, Budapest, Hungary
